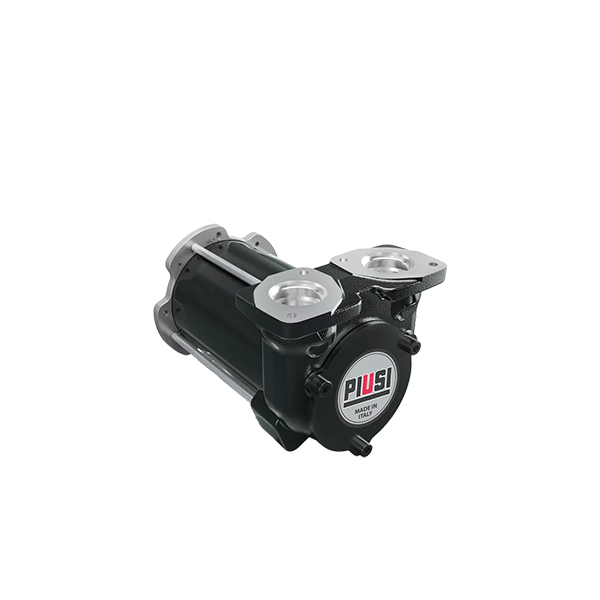

Piusi BP3000 Vane Pump 12V Inline 3/4" BSP

Available at fuel-parts.com is the Piusi BP3000 12v self-priming electric pump for diesel fuel transfer.

Designed by the Piusi Team for applications where a safe and durable product is required.

Used in the construction and agriculture industries as a first installation on earthmoving machines, or to equip mobile dispensers on vehicles or construction site vehicles.

The BP3000 12V features a flow rate of 50l/min and the DC motor can withstand continuous duty cycles for up to 30 minutes. The transfer pump is equipped with a vane motor, sintered rotor and acetal resin vanes that ensures greater power and precision in the dispensing phase. The By-Pass valve integrated in the pump body allows the adjustment of the flow during the dispensing phase. The structure of the pump body in cast iron with anti-corrosion treatment and finishing paint makes it durable and reliable in Australian weather conditions.

• Vane type pump with rotor.
• By-pass valve incorporated into the pump body.
• Guaranteed IP55 Protection, prevents water and dust entering the motor.
• EMC Test, no interference with power circuits.
• Vibration test - able to resist high vibrations.

• Duty Cycle: 30 mins
• Flow Rate: up to 50l/min
• Noise Level: below 70dB
• Voltage: 12V DC
• Power Watt: 300w
• Max Amps: 24
• RPM: 2900

If you are looking for a high performance electric pump for diesel fuel transfer, the Piusi BP3000 pump is an excellent choice.
