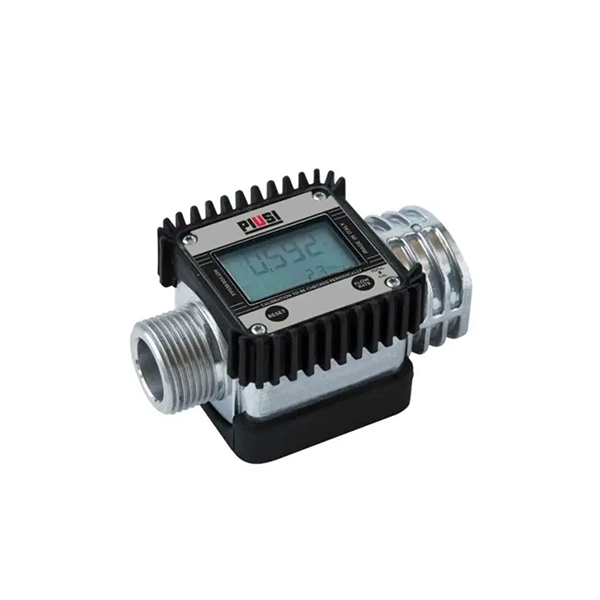

Piusi Diesel K24-ATEX Digital Flow Meter 1" BSP - With Display

PIUSI K24 ATEX/IECEX is the new Flow meter for non-commercial use, for measuring the dispensed quantity of Gasoline, kerosene and diesel.

The Piusi K24 ATEX/IECEX Flow Meter is a digital turbine pulse meter designed for Gasoline, kerosene and diesel that meets the ATEX/IECEX requirements for the use of materials in potentially explosive atmospheres. K24 ATEX/IECEx has a sturdy aluminum body and a sealed electronic board, making it suitable for use in any working condition.

Easy to install, in line or at the end of the dispensing pipe. It is the ideal tool for managing the fluid dispensed. A Pulse Meter has no electronic display and it is used to interface consumption information with external management systems, or indicators allowing the information to be read and stored elsewhere.

• K24 ATEX/IECEx also includes these characteristics:
• Pulse signal type: single-channel, reed switch.
• Electronic board with LCD Display:
  • Partial 5 Digits from 0.1 to 99999
  • Total 6 Digits 1 to 999999
• Flow rate indication.
• Repeatability 0.3%.
• Pressure drop < 0.03 bar at 120 l/min
• Can be calibrated

• Rotatable Display
• Bi-Directional
• Turbine

• Body: Aluminium
• Gears: Technopolymer

• Suitable Fluid Type: Diesel, Gasoline, Kerosine
• Flow Rate: 7-120 L/Min (2-32 G/Min)
• Pressure: 20 Bar (300 Psi)
• Special Battery included
• Inlet/Outlet: M1" BSP - F1" BSP
